Earthbag Foundation for SB House in Haiti
from Builders Without Borders

Builders Without Borders’ Haiti team, led by architect Martin Hammer and builder Andy Mueller, completed its first project in March 2011 in Port-au-Prince. BWB’s Ti Kay Pay (Small Straw House) is the first straw bale building in Haiti.

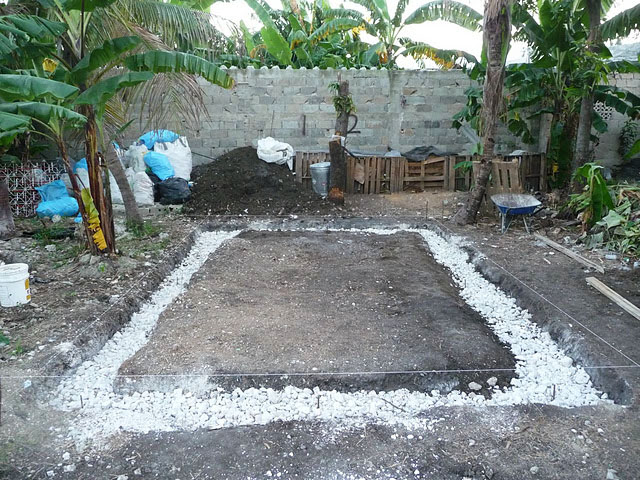

Rubble trench complete

Mesh reinforced concrete footing over rubble trench

Tarp remnant is sewn to become a gravel bag

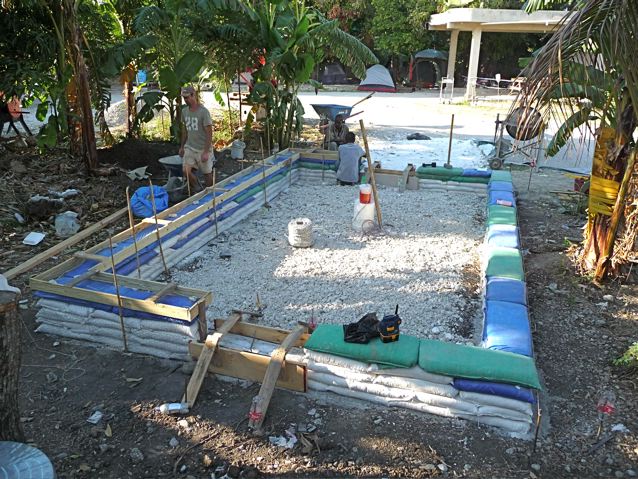

Gravel bag foundation, using salvaged tarps sewn to fit

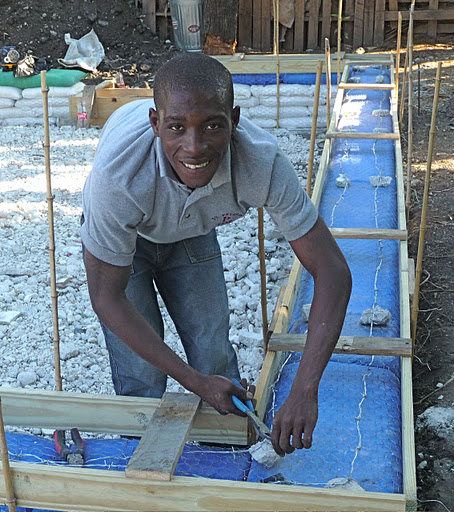

Jean Louis Elie tying off barbed wire reinforcing for concrete cap of gravel bag stem wall

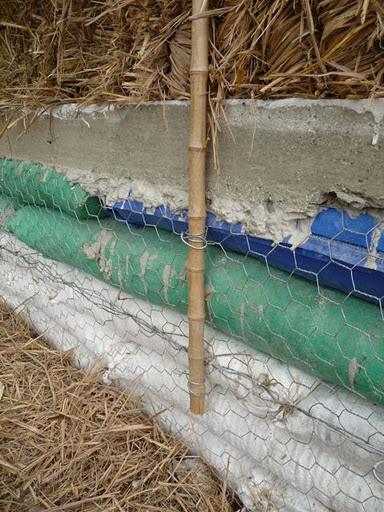

External bamboo pin grabs gravel bag stem wall.  Galvanized  mesh awaits a lime-cement plaster.

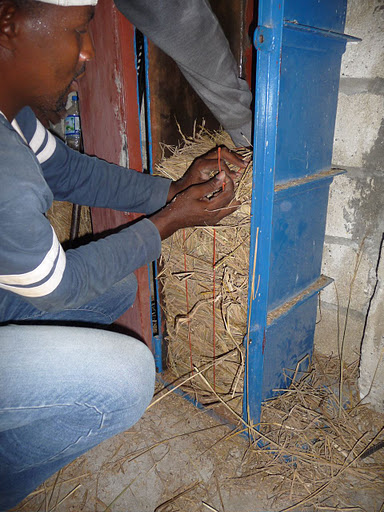

Steel compression mould with farm jack is used to compress rice straw into a bale.

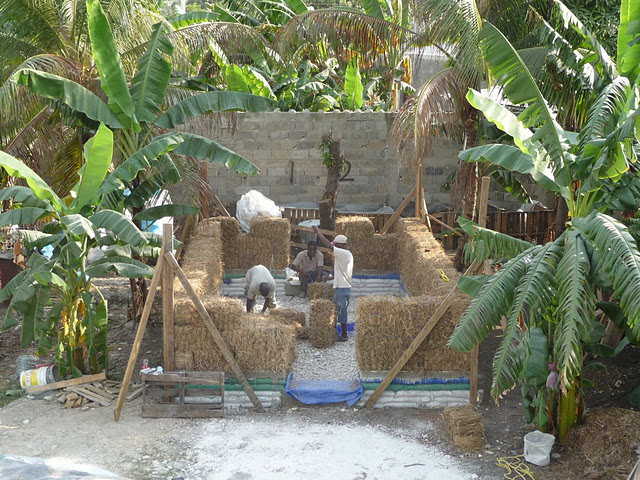

First strawbale building in Haiti, under construction

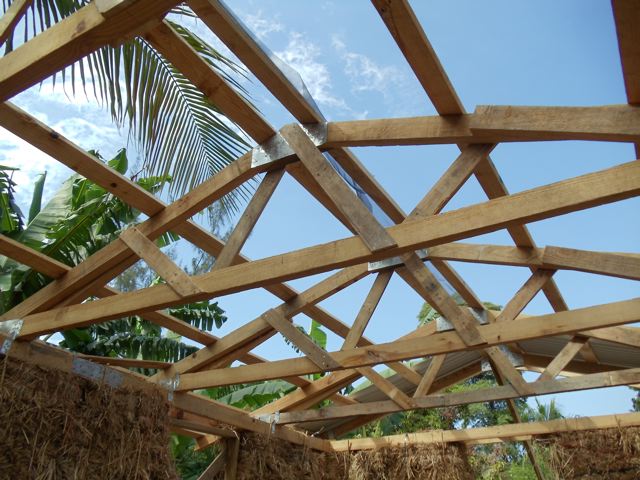

Roof trusses using dismantled pallets for webs and bottom chords

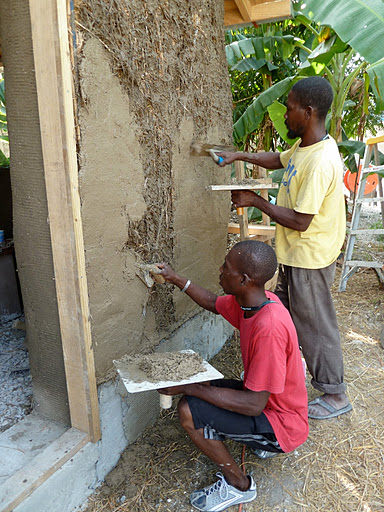

Jean Louis and Annio apply exterior scratch coat of earth plaster

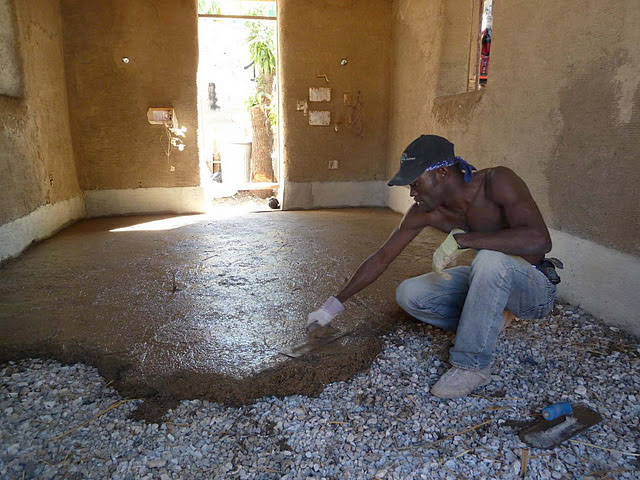

Site soil, sand, and chopped floor base being installed over crushed rubble drainage layer

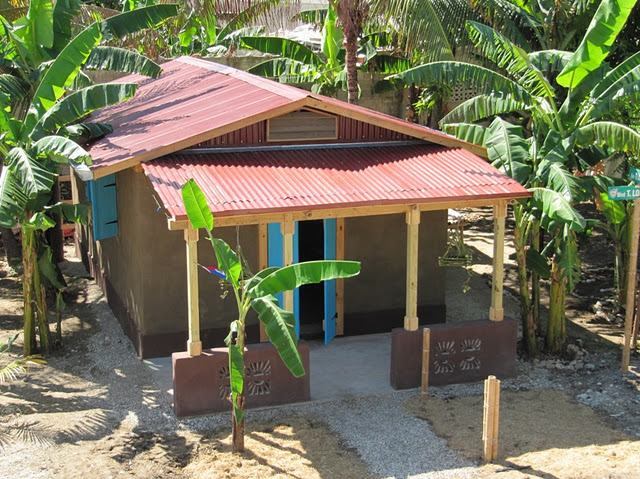

Haiti's first Ti Kay Pay (Small Straw House)
